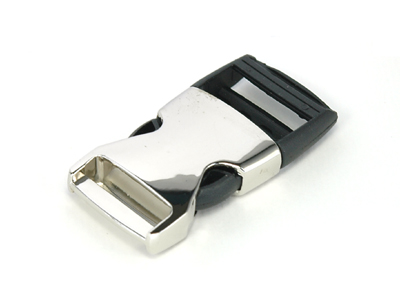

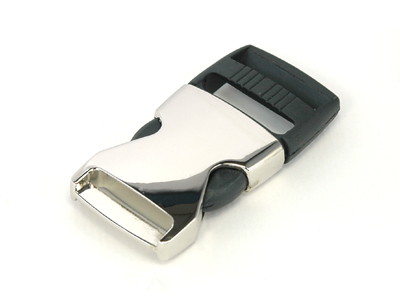

MBS12 Metal/Plastic Hybrid Side Release Buckle


Price: As low as $0.63

Product Options

Color:
Webbing Size:

30%-80% Quantity Discount. FREE Shipping for Minimum $100 in the Continental US.

Size From 3/4 Inch to 1 1/2 Inch (20 mm to 38 mm). One Side Adjustable.

3/4" Breaking Strength 48 lbs, 22 kgs.
1" Breaking Strength 66 lbs, 30 kgs.
1 1/2" Breaking Strength 165 lbs, 75 kgs.

Breaking Strength can be varied with respect to individual applications. These figures are offered as reference only and are not to be used as guaranteed performance figures. Products should be tested in their specific application.

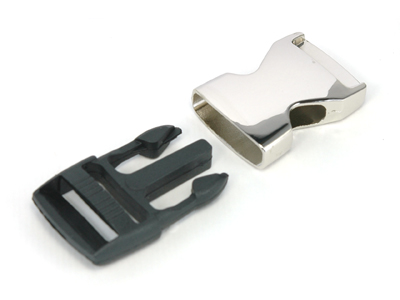

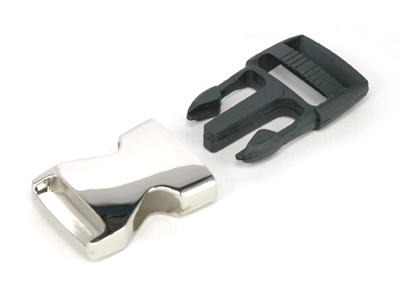

Male part is made of POM Material.
Female part is made of Zinc Alloy.

3/4" Dimension 1 15/16" x 15/16" x 5/16" (49 mm x 24 mm x 8 mm)
1" Dimension 2 5/8" x 1 5/16" x 1/2" (66 mm x 33 mm x 12 mm)
1 1/2" Dimension 3 3/16" x 1 13/16" x 9/16" (81 mm x 46 mm x 14 mm)
